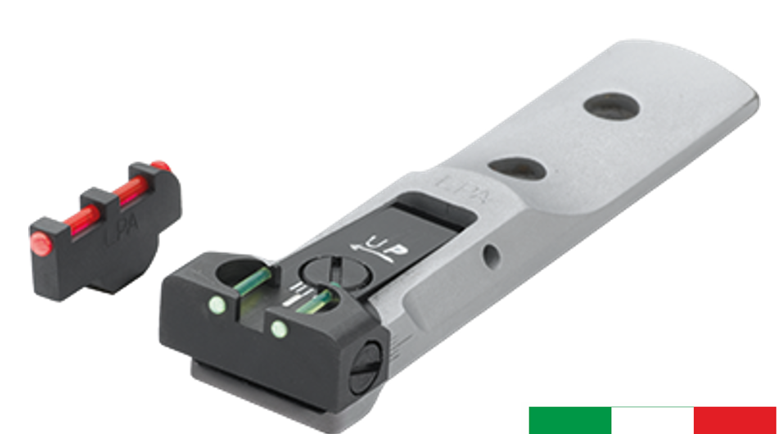

LPA TXT Adjustable Fiber Optic Target Tactical Sight Set Smith & Wesson Revolvers - TXT03F1

Give yourself a competitive shooting advantage with the LPA TXT competitive sights for proven faster sight alignment. The LPA TXT Fully adjustable compact low profile rear sight with green fiber optic rear sight in silver finish with red fiber optic front sight (fitted using a "Roll" pin - Classic MP35F) will improve your target picture and aim upgrading your revolver and shooting experience. Designed to look good and work great on your revolver making it an awesome upgrade for any shooter.

The Italian Made LPA TXT Family of sights start with high grade steel bar stock and are manufactured using the latest in CNC manufacturing technology to the highest standards of materials, quality and workmanship.

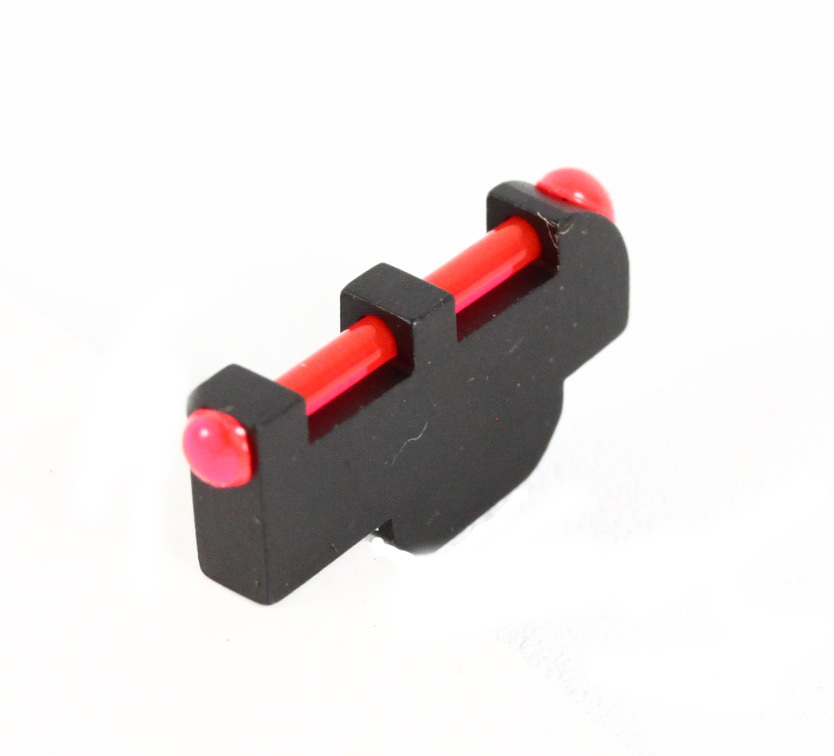

Made to fit the Smith and Wesson revolver frames including 629, 686, 586, 627, 66, 67, 696, 17, 19, 657, 610, 625, 29, 27, and the new caliber 50 (all models with drilled and tapped frame for S&W scope).  This is important the LPA TXT rear sights match the pre-drilled factory holes on the newer revolvers frames making the rear sight an easy to install. If your revolver frame is not pre-drilled, this sight won’t work and simply won’t fit. Check your frame before you order. The front sight is held in place with a "Roll" retaining pin.  The front sight must be DRILLED for the "Roll" pin.

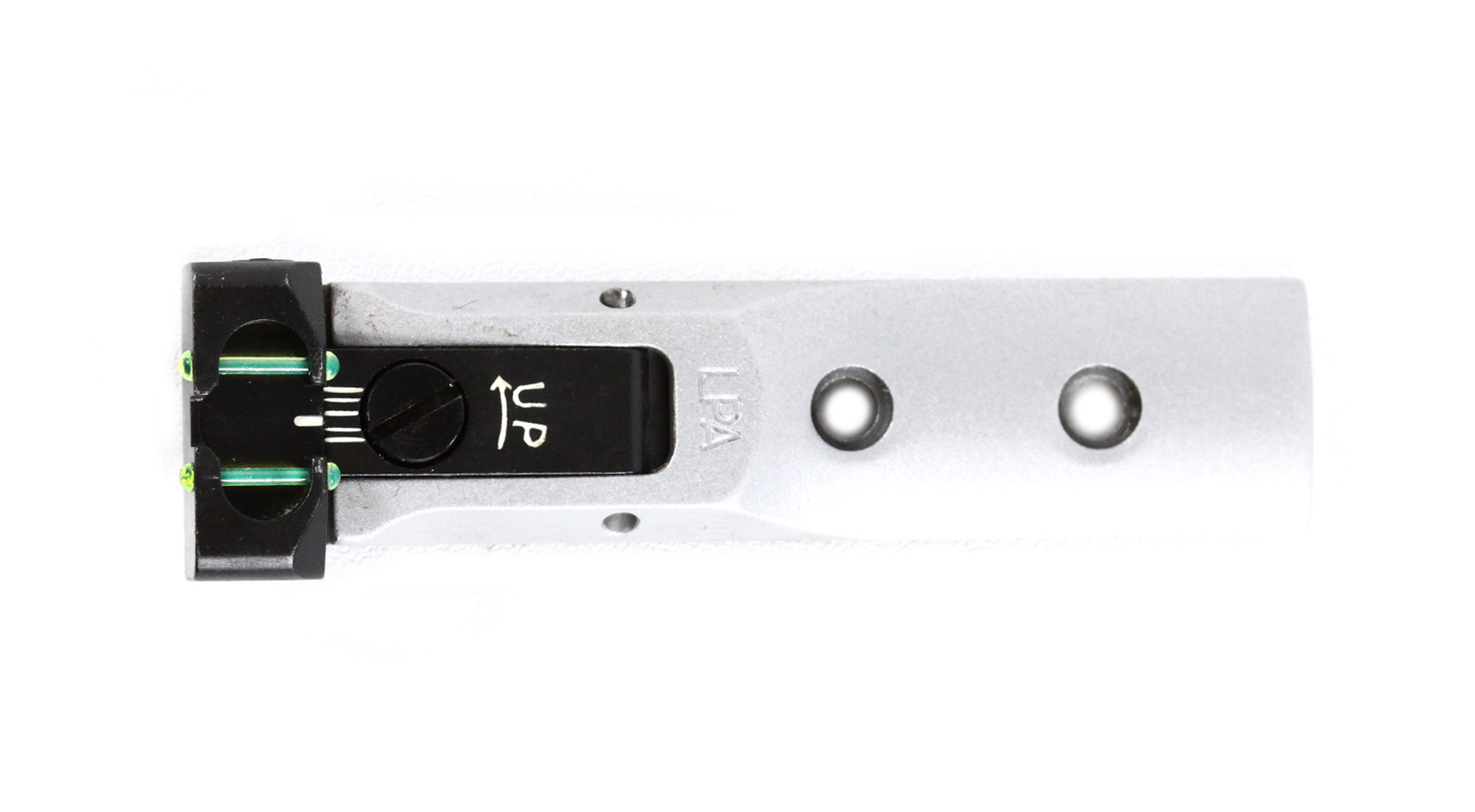

LPA TXT Fully adjustable REAR sight will work with most original factory front sights. Micro-metric adjustment for windage and elevation provided by hardened "Micro-Click" screwsHardened "micro-click" adjustment screws give smooth and accurate match/target adjustment for both windage and elevation. The LPATXT0107 comes with complete sight assembly, 2 mounting screws and the adjustment wrench.

INSTRUCTIONS:

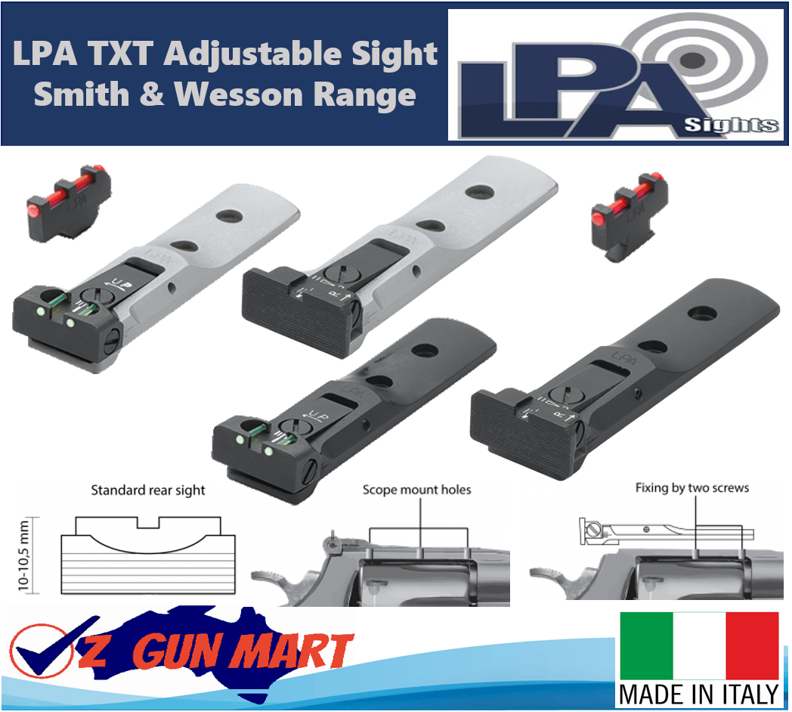

1. Overall height of the rear sight to replace has to be between 10-10,5 mm

2. The revolver has to be suitable to accept S&W scope (all new drilled and tapped frame) Distance between mounting holes: 15,3 mm



3. After having disassembled the standard sight, the TXT has to be fitted on the gun using two screws supplied into the blister pack

Please Note:

Oz Gun Mart has the full range of LPA TXT sights and they are available with either black or silver bases to match or contrast with the frame finish of the gun.  You can purchase just the rear sights, just the front sights or both the front and rear sights.  We also carry a range of spear parts for LPA. If you need any help, just send us a message.
