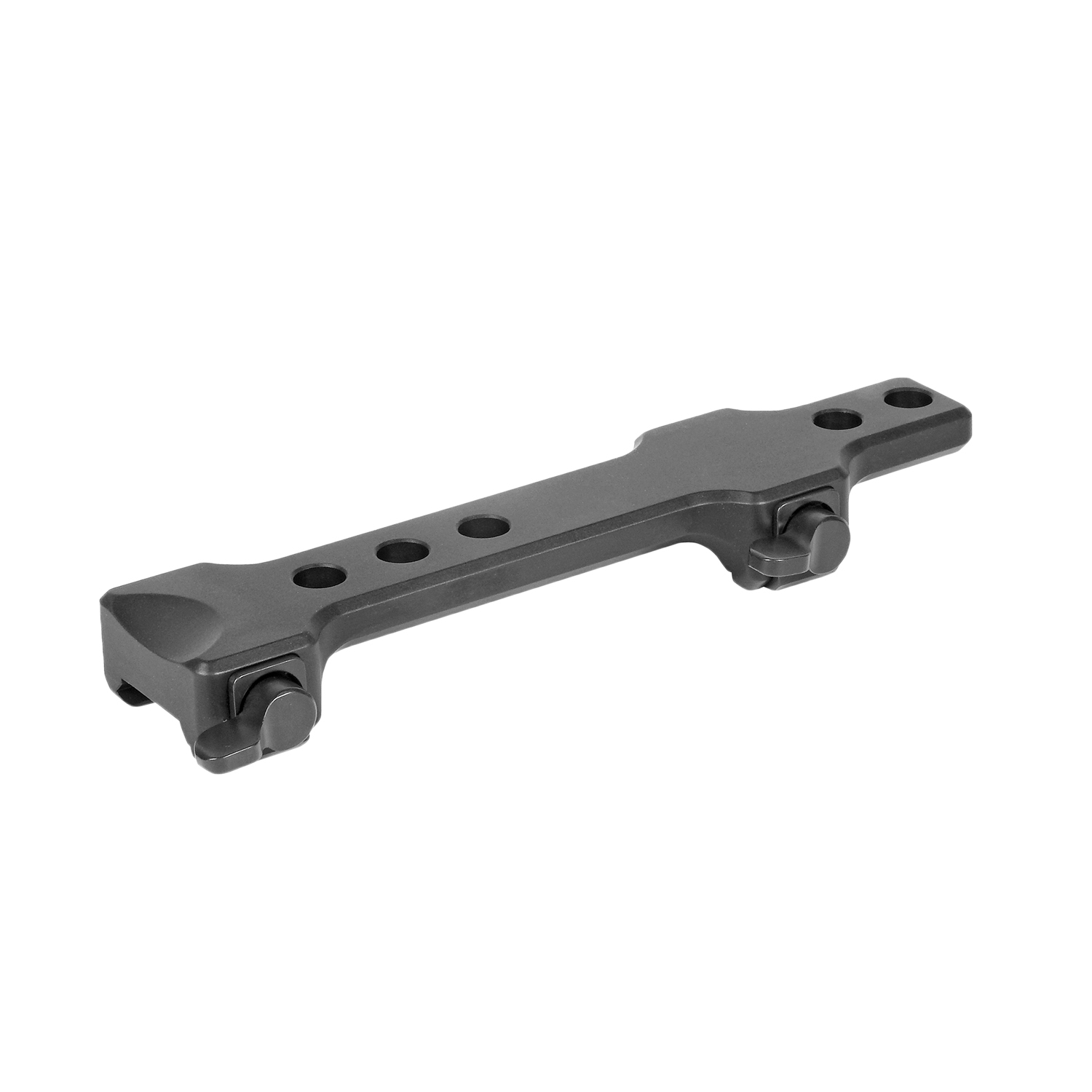

MAKuick one-piece
MAKuick mounts are robust and reliable. They offer a 100 % repeatability, meaning that the user can remove them and put them back onto the rifle without the need to re-zero. MAKuick mounts are designed so that they can withstand the recoil of even the most powerful calibers out there. They are lightweight because both the base and the rings are made from aluminum. The whole system that is in contact with the rifle (the clamping assembly) is made from steel. MAKuick is a versatile series of mounts – it allows mounting of all sorts of rings, all sorts of mounting rails (LM, ZM/VM, SR, Convex), different adapters that allow mounting of other devices such as ATN X-Sight; Pulsar Digisight, Apex, Trail; Fortuna devices etc. MAKuick mounts made for the mounting of riflescopes with a rail underneath are made of one part. Because of this, they are more robust, durable and reliable. For digital and thermal optical devices, the buyer has to pick a MAKuick base with four holes on which rings are usually put. Instead of the rings, the user mounts an adapter on top that works as a connector between the thermal optics and the MAKuick base. MAK makes one-piece MAKuick bases for the following rifles: CZ 527, CZ 550, Merkel KR 1, Merkel RX Helix – also fits on all Picatinny rails, Sauer 303, Sako 75, Sako 85 S, Sako 85 M, Tikka T3 and Blaser rifles. They also make a MAKuick base for break barrel rifles with a 12 mm dovetail and for break barrel rifles with a 14.5 mm dovetail (usually found on Czech break barrel rifles).
MAKuick one-piece ring mounts
In the MAKuick series, MAK offers plenty of options. As regards the diameter, the following rings are produced: 25.4, 30, 34, 36 and 40 mm. The base measures 12 mm in height. The rings are available in 2.5, 5 and 10 mm BH height.
Mounting instructions
First, the user has to make sure that the rifle is fixed (it is advised that the rifle is put into a rifle holder). Once the mount is put onto the mounting surface and fixed by rotating the levers for 180°, the lock screws have to be unscrewed. The user then adjusts the clamping force of the adjustment screws with a hex key so that they are tightened but not too tightened. The lock screws have to be re-tightened to complete the mounting procedure. Once the riflescope is put into the ring mount, no lapping is required. The rings do not have to be glued. Nevertheless, some gunsmiths prefer to glue them to ensure that the riflescope does not move during shots. The recommended tightening torque is 2.2 Nm.
Shipping not available to AU, please try another location.
| SKU | 5072-00133 |
| Brand | MAK |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.040m |
| Shipping Length | 0.200m |
MAKuick one-piece
MAKuick mounts are robust and reliable. They offer a 100 % repeatability, meaning that the user can remove them and put them back onto the rifle without the need to re-zero. MAKuick mounts are designed so that they can withstand the recoil of even the most powerful calibers out there. They are lightweight because both the base and the rings are made from aluminum. The whole system that is in contact with the rifle (the clamping assembly) is made from steel. MAKuick is a versatile series of mounts – it allows mounting of all sorts of rings, all sorts of mounting rails (LM, ZM/VM, SR, Convex), different adapters that allow mounting of other devices such as ATN X-Sight; Pulsar Digisight, Apex, Trail; Fortuna devices etc. MAKuick mounts made for the mounting of riflescopes with a rail underneath are made of one part. Because of this, they are more robust, durable and reliable. For digital and thermal optical devices, the buyer has to pick a MAKuick base with four holes on which rings are usually put. Instead of the rings, the user mounts an adapter on top that works as a connector between the thermal optics and the MAKuick base. MAK makes one-piece MAKuick bases for the following rifles: CZ 527, CZ 550, Merkel KR 1, Merkel RX Helix – also fits on all Picatinny rails, Sauer 303, Sako 75, Sako 85 S, Sako 85 M, Tikka T3 and Blaser rifles. They also make a MAKuick base for break barrel rifles with a 12 mm dovetail and for break barrel rifles with a 14.5 mm dovetail (usually found on Czech break barrel rifles).
MAKuick one-piece ring mounts
In the MAKuick series, MAK offers plenty of options. As regards the diameter, the following rings are produced: 25.4, 30, 34, 36 and 40 mm. The base measures 12 mm in height. The rings are available in 2.5, 5 and 10 mm BH height.
Mounting instructions
First, the user has to make sure that the rifle is fixed (it is advised that the rifle is put into a rifle holder). Once the mount is put onto the mounting surface and fixed by rotating the levers for 180°, the lock screws have to be unscrewed. The user then adjusts the clamping force of the adjustment screws with a hex key so that they are tightened but not too tightened. The lock screws have to be re-tightened to complete the mounting procedure. Once the riflescope is put into the ring mount, no lapping is required. The rings do not have to be glued. Nevertheless, some gunsmiths prefer to glue them to ensure that the riflescope does not move during shots. The recommended tightening torque is 2.2 Nm.
| SKU | 5072-00133 |
| Brand | MAK |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.050m |
| Shipping Height | 0.040m |
| Shipping Length | 0.200m |
