RS 4 | |
Model | 3-12x56 |
Magnification | 3 - 12 x |
Lens diameter (mm) | 56 |
Diameter of exit pupil (mm) | 10.0 - 4.6 |
Visual field in m at 100 m | 13.3 - 3.3 |
Distance to exit pupil (mm) | 90 |
Dioptre adjustment | -3 / +2 |
Elevation and lateral adjustment (per click) | 1 cm / 100 m |
Reticle adjustment range (elevation / lateral) | ±200 cm / 100 m |
Parallax adjustment | 10 m up to ∞ |

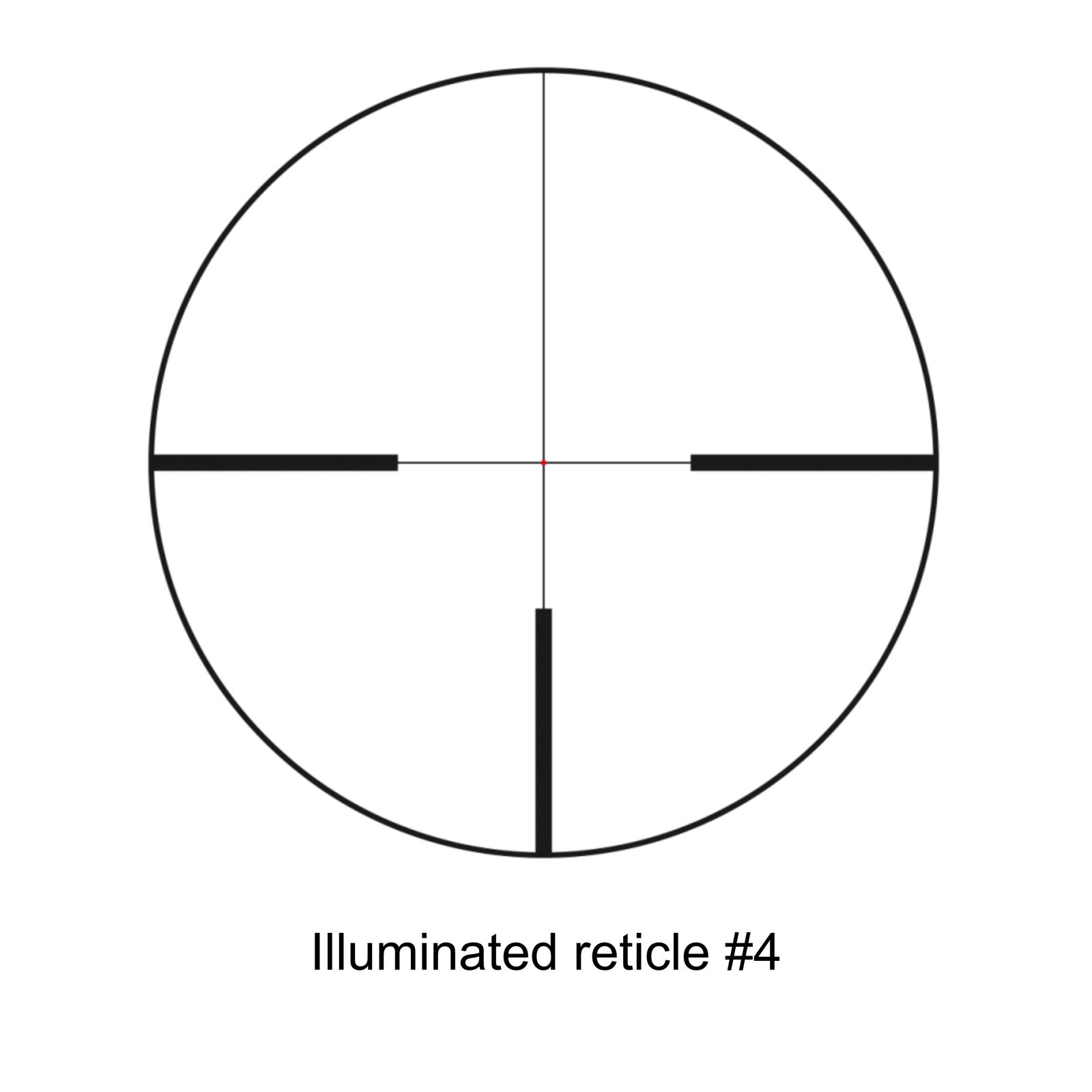

Illuminated reticle | Yes, fibre optics |
Focus plane | 2 |
Power supply for the illuminated reticle | CR 2032 |
Nitrogen filling | Ja |
Anti-fog and watertight | Yes, 4 m for 30 min |
Central tube diameter (mm) | 30 |
Length (mm) | 365 |
Weight (g) | 745 |

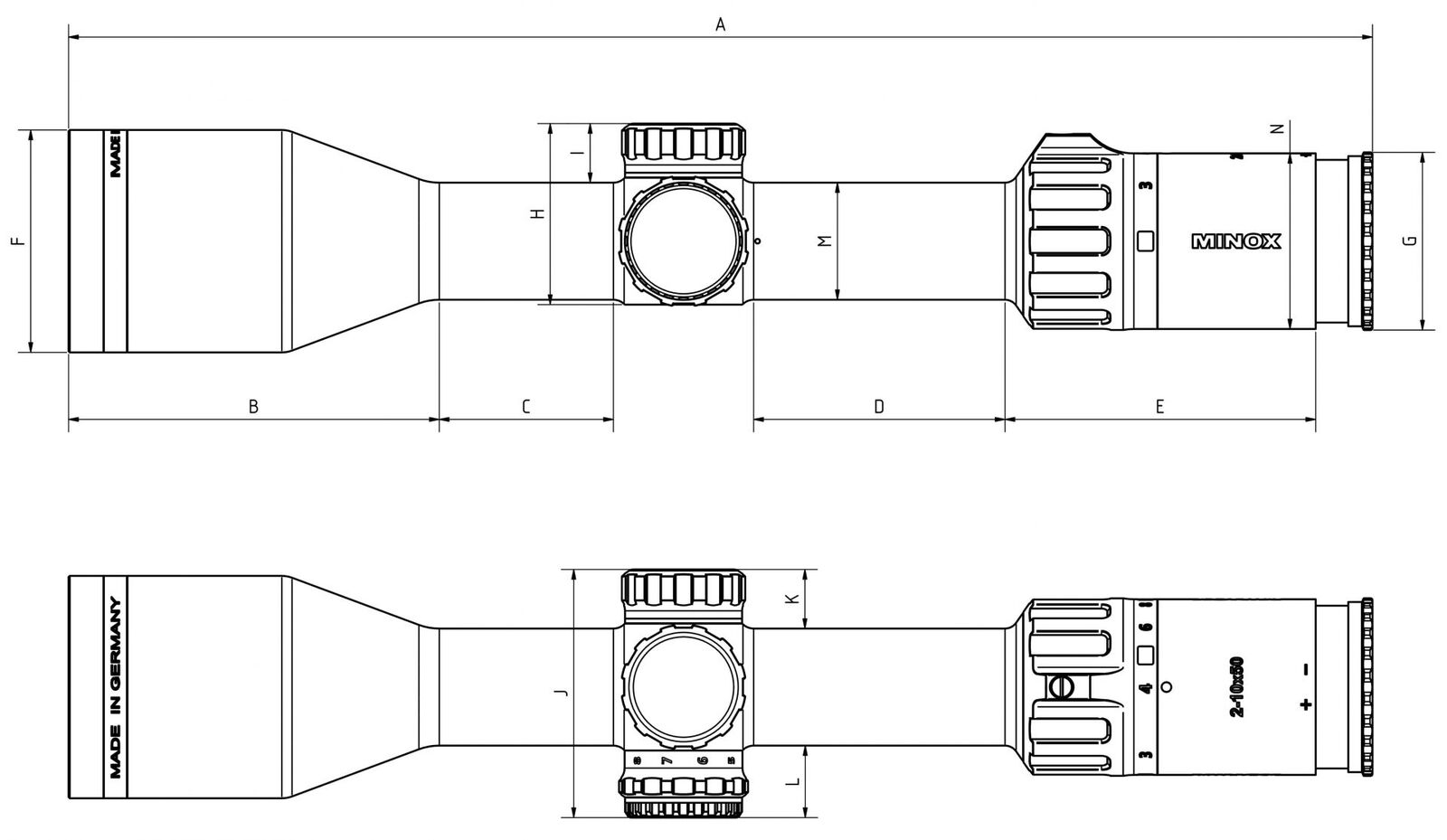

| A | B | C | D | E | F | G | H | I | J | K | L | M | N | |
| 1-4x24 | 274 | 122 | - | 54.5 | 96.8 | 30.0 | 45.4 | 46.8 | 14.8 | 61.8 | 14.8 | 17.0 | 30.0 | 46.0 |
| 2.5-10x50 | 344 | 104.9 | 47.6 | 62.0 | 97.0 | 56.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
| 2.5-10x42 | 295 | 61.5 | 37.0 | 62.0 | 97.0 | 48.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
| 3-12x56 | 365 | 110.9 | 57.5 | 62.0 | 97.0 | 62.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
Shipping not available to AU, please try another location.
| SKU | M80413880 |
| Barcode # | 80413880 |
| Brand | Minox |
| Shipping Weight | 0.7450kg |
| Shipping Width | 0.056m |
| Shipping Height | 0.056m |
| Shipping Length | 0.365m |
RS 4 | |
Model | 3-12x56 |
Magnification | 3 - 12 x |
Lens diameter (mm) | 56 |
Diameter of exit pupil (mm) | 10.0 - 4.6 |
Visual field in m at 100 m | 13.3 - 3.3 |
Distance to exit pupil (mm) | 90 |
Dioptre adjustment | -3 / +2 |
Elevation and lateral adjustment (per click) | 1 cm / 100 m |
Reticle adjustment range (elevation / lateral) | ±200 cm / 100 m |
Parallax adjustment | 10 m up to ∞ |
Illuminated reticle | Yes, fibre optics |
Focus plane | 2 |
Power supply for the illuminated reticle | CR 2032 |
Nitrogen filling | Ja |
Anti-fog and watertight | Yes, 4 m for 30 min |
Central tube diameter (mm) | 30 |
Length (mm) | 365 |
Weight (g) | 745 |
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | |
| 1-4x24 | 274 | 122 | - | 54.5 | 96.8 | 30.0 | 45.4 | 46.8 | 14.8 | 61.8 | 14.8 | 17.0 | 30.0 | 46.0 |
| 2.5-10x50 | 344 | 104.9 | 47.6 | 62.0 | 97.0 | 56.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
| 2.5-10x42 | 295 | 61.5 | 37.0 | 62.0 | 97.0 | 48.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
| 3-12x56 | 365 | 110.9 | 57.5 | 62.0 | 97.0 | 62.0 | 45.4 | 46.8 | 14.8 | 73.1 | 14.8 | 28.3 | 30.0 | 46.0 |
| SKU | M80413880 |
| Barcode # | 80413880 |
| Brand | Minox |
| Shipping Weight | 0.7450kg |
| Shipping Width | 0.056m |
| Shipping Height | 0.056m |
| Shipping Length | 0.365m |
