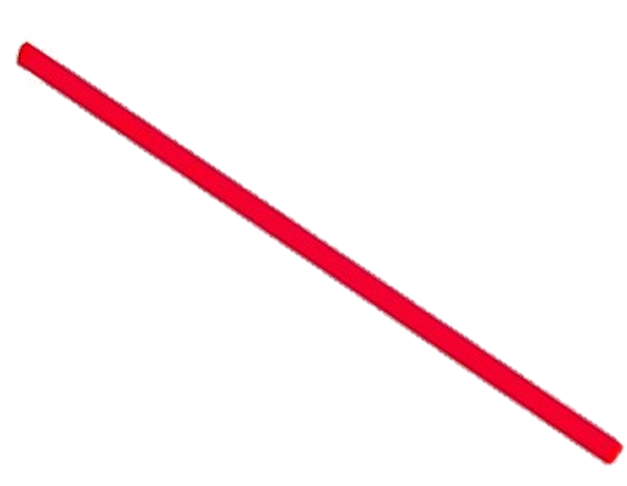

Fibre Optic rods for the fibre optic sights. For Truglo, LPA, Dawson, STI and many other sights as well as with Archery Optics Fiber Bow Sight
It's not just a piece of plastic, rather a scientific component designed to capture, fluoresce, and emit light through a precise orb. This true fibre optic is composed of a core layer of material impregnated with a fluorescing compound that reacts to ultraviolet (UV) light. It is surrounded by a thin sheathing layer with a refraction index different from the core. UV light enters through the sides of the fibre where it is trapped due to the differing refraction indices of the sheath and core. The UV light causes material in the core to fluoresce and project visible light out the end of the tube. Hence, the longer the tube, the more light is captured and projected out the end. And even on a cloudy day, there is still lots of UV light available to fire up the fibre optic.
One package contains - 1 x 100 mm long rod.
Available diameters:
• 1,0 mm ( 0,040" )
Available colours:
• Red
• Green
1) Remove the broken fibre from the sight.
2) Insert replacement fibre from the muzzle end and leave approx. 1/16 inch sticking out (the more you leave sticking out the bigger the dot).
3) Melt the end with a cigarette lighter.
4) Hold the melted end tight against the sight and cut the end closest to the muzzle, leaving 1/16 overhang.
5) Melt the muzzle end of the fibre while holding the fibre tightly against the sight.
It is important to make sure that the fibre is snug in the sight with no playback and forth. A loose fibre will break very quickly.
| SKU | PFBO-10R |
| Brand | Patrol |
| Shipping Weight | 0.0010kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.010m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000003000m3 |
| Unit Of Measure | ea |
| Assembled Height | 0.050m |
