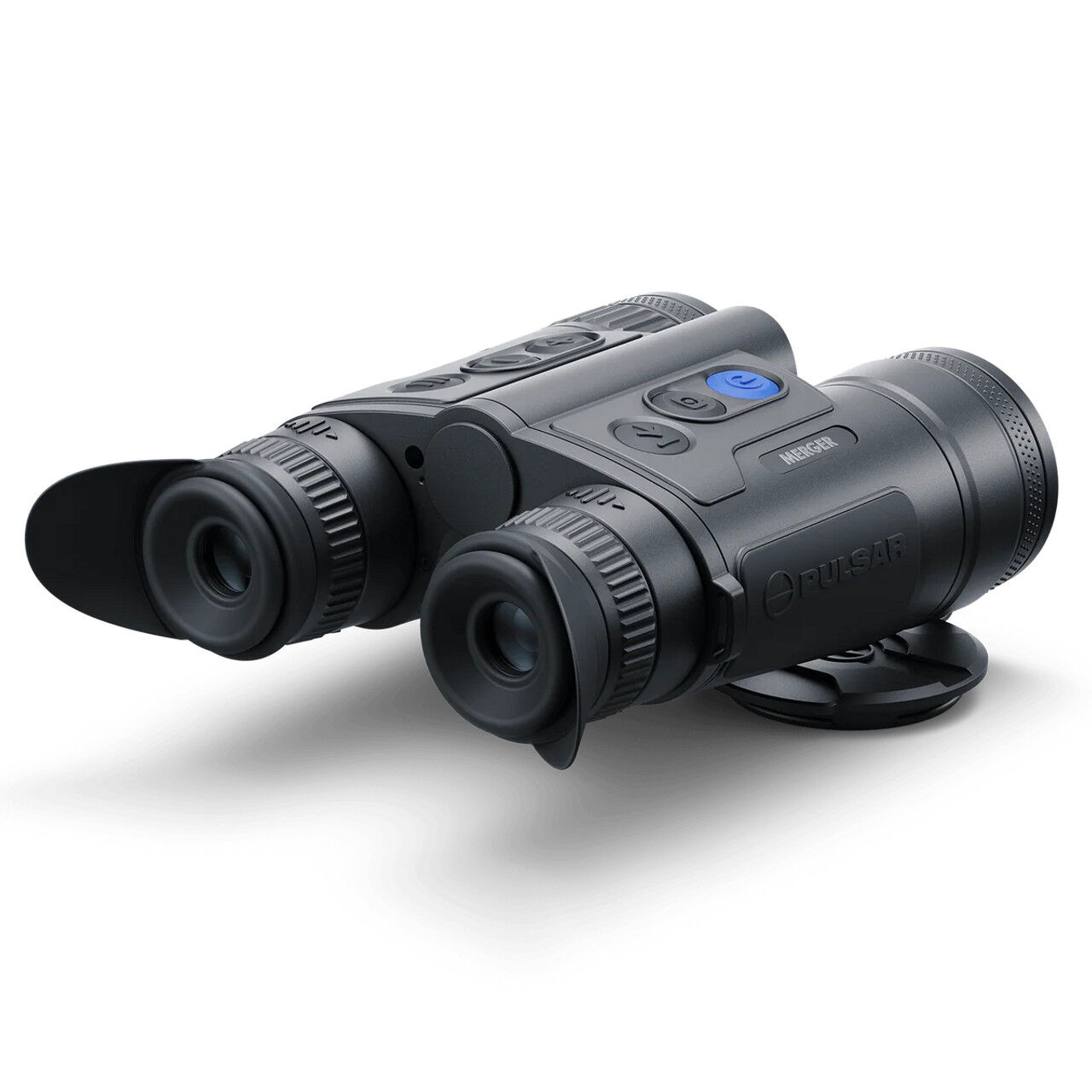

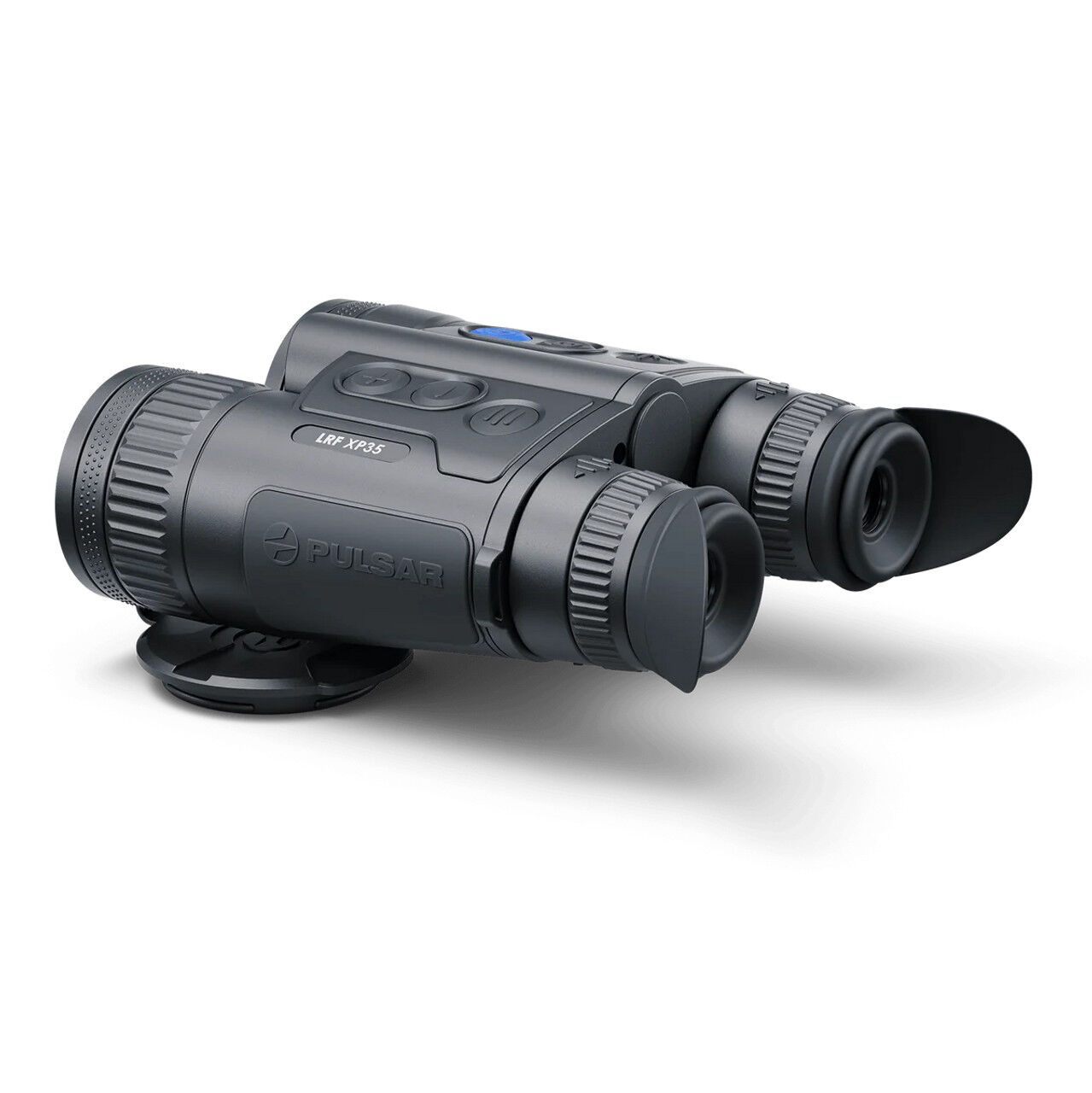

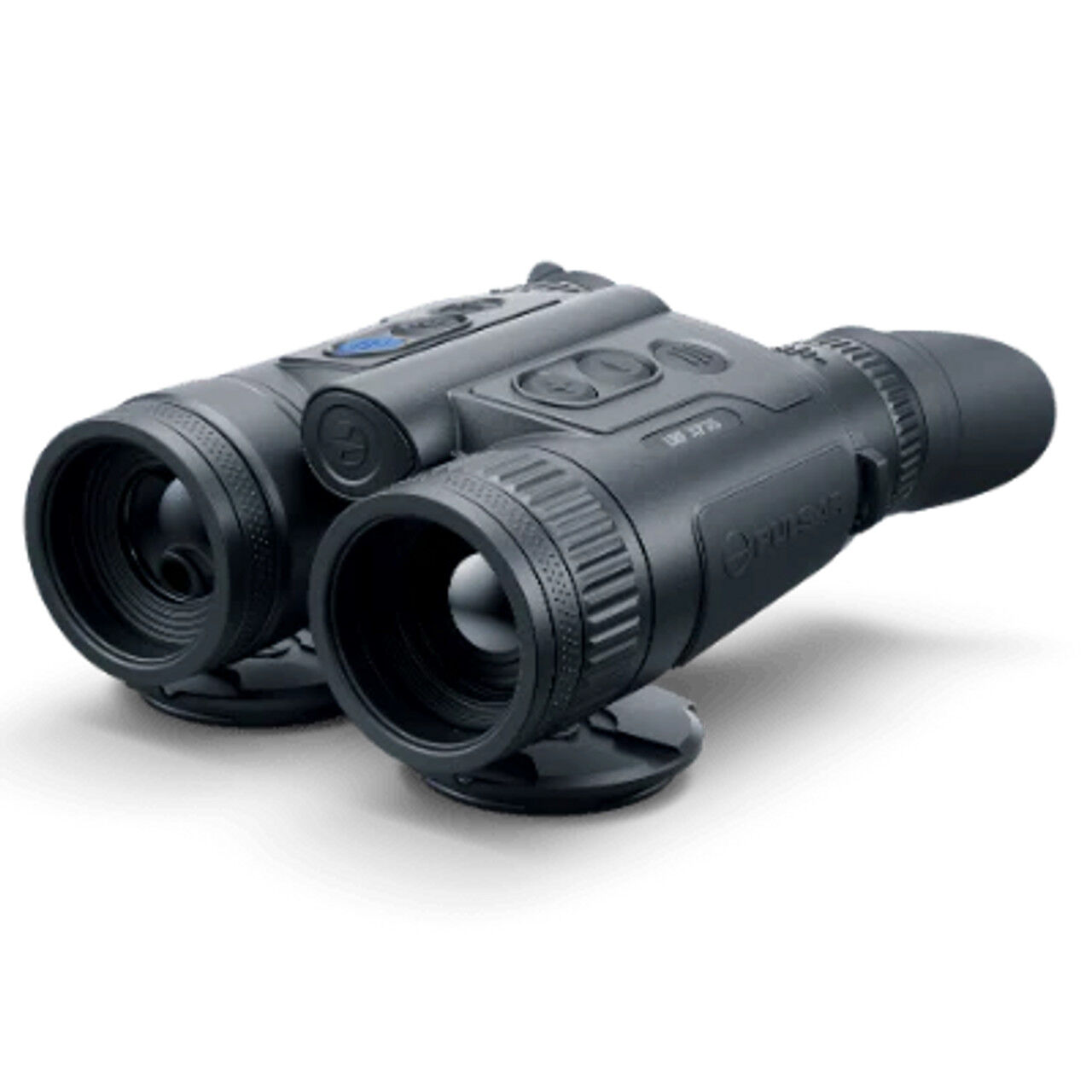

The PULSAR MERGER LRF XP35 is a compact thermal binocular with an integrated rangefinder, ideal for hunters who prefer the natural feel of two-eyed viewing. Its perfect for long sessions glassing paddocks, timber edges and hill faces while still being able to quickly confirm distance to game.
Compact and capable thermal binoculars
The Merger LRF XP35 delivers Pulsars premium thermal technology in a lighter and more compact binocular design, making it ideal for users who want comfort without sacrificing image quality. It provides detailed thermal imagery and a dependable detection range suitable for a wide range of outdoor applications.
Adaptive viewing features
A 9-colour palette, three calibration modes and multi-level sensitivity enhancement let you adjust the image for different environments and weather conditions. Smooth zoom and ergonomic eye spacing help maintain comfortable, natural viewing.
Integrated distance measurement
With a built-in laser rangefinder, the XP35 provides accurate distance readings for improved situational awareness and decision-making in the field.
Convenient recording and wireless tools
The XP35 includes built-in video and audio recording plus Wi-Fi capability for smartphone control, live streaming and cloud backups via Stream Vision 2. Firmware updates are easily installed using the same app.
Ready for harsh weather
Operating between ?25 °C and +40 °C and fully waterproof to IPX7, the device is engineered to perform reliably in rain, cold and other demanding conditions.
Dual power system
Its combination of an internal battery and removable APS 3 pack offers extended runtime, while USB power bank charging ensures even greater flexibility on multi-day trips.
Shipping not available to AU, please try another location.
| Sensor | |
|---|---|
| Type | uncooled |
| Resolution, pixels | 640x480 |
| Pixel pitch, µm | 17 |
| Sensor NETD, mK | < 25 |
| System NETD, mK | < 18 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F35 / 1.0 |
| Magnification, x | 2 16 |
| FOV (HxV), degrees | 17.8 x 13.3 |
| FOV (HxV), m@100m | 31.3 x 23.4 |
| Diopter Adjustment, D | -5/+4 |
| Interpupillary distance adjustment, mm | 63-74 |
| Eye relief, mm | 15 |
| Display | |
| Type | AMOLED HD |
| Resolution, pixels | 1024x768 |
| Laser rangefinder | Max. measuring range, m |
| 1000 | Measurement accuracy, m |
| ± 1 | Safety class for laser equipment |
| according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Video recorder | |
| Video / photo resultion, pixel | 1024x768 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 16 |
| Wi-Fi | |
| Wireless protocol | |
| Wireless standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental characteristics | |
| Degree of protection | IP code (IEC60529) |
| IPX7 (waterproof) | Operating temperature range, °? |
| -25 +50 | |
| Connections & compatibilities | |
| Mount type | 1/4" socket |
| Supported application | Stream Vision 2 |
| Power supply | |
| Output voltage, V | 3.7 |
| Battery type | Dual Li-Ion Battery Pack: APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in) |
| Capacity, mAh | 3200 (removable) + 4000 (built-in) |
| Operating time on battery pack, h | at t=22°? |
| 9 | External power supply, V |
| 5V (USB type-C) | |
| Weight & size | |
| Body material | Magnesium alloy |
| Dimensions, mm | 165x133x68 |
| Weight, kg | 0.83 (batteries included) |
| SKU | 77484 |
| SKU | PUL-77484 |
| Barcode # | 4779022926099 |
| Brand | Pulsar |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.090m |
| Shipping Length | 0.280m |
